WAF and API Gateway

Updated Aug 30, 2020 ·
NOTES

This is not an exhaustive documentation of all the existing AWS Services. These are summarized notes that I used for the AWS Certifications.

To see the complete documentation, please go to: AWS documentation

AWS WAF​

AWS WAF is a web application firewall that helps to protect your web applications from common web exploits that could affect application availability, compromise security, or consume excessive resources.

  • Can specify web security rules on which traffic to allow or block.
  • Can create custom rules to block common attack patterns.

AWS Shield and Shield Advanced​

Shield is a managed service that is enabled by default and works in conjunction with WAF which provides basic DDoS protection at no additional cost for AWS customers.

Shield Advanced is a paid version:

  • 3000USD per month plus additional data transfer fees
  • Cost protection and advanced capabilities
  • Advanced DDoS protection
  • 24/7 DDoS response team
  • More visibility and reporting

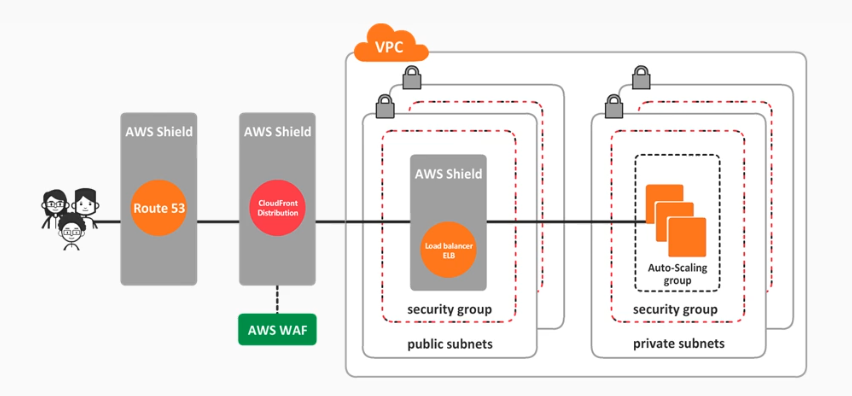

How it works​

  • WAF integrates with application loadbalancers at a regional level.

  • It also works with CloudFront at a global level.

  • WAF also allows geofencing to allow access from certain countries.

  • Can be configured in multiple ways:

    • Allow all - withe exceptions

    • Block all - with exceptions

    • Count the ones that match certain properties

Throttling and Caching in API Gateway​

As a recap, API Gateway is a fully managed service that makes it easy for developers to create, publich, maintain, monitor, and secure APIs at any scale.

  • Creat REST and WebSocket APIs
  • Acts as front door for applications to access data, business logic, or functionality from your backend services

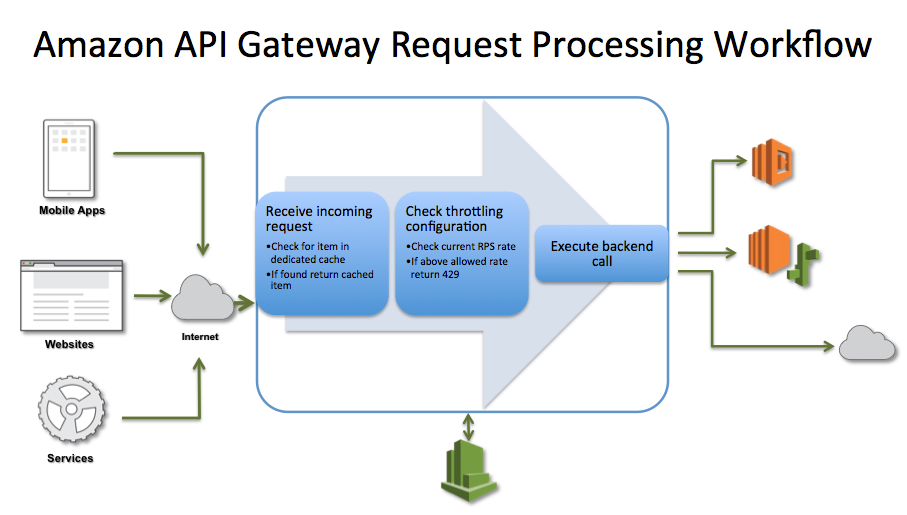

Throttling​

The API Gateway Throttling feature prevents your API from being overwhelmed with too many requests.

  • When exceeded, it returns a:

    HTTP 429  TOO MANY REQUESTS

  • Allows you to configure how many requests your API can handle:

    • request per second
    • burst of requests

Caching​

This feature allows caching the endpoint response.

  • If a lot users request for the same object, API Gateway can cache the response which reduces the processing
  • Reduces latency
  • When enabled, TTL can be from 300 to 3600 seconds
