Elastic Load Balancer

Updated Jul 26, 2020 ·
NOTES

This is not an exhaustive documentation of all the existing AWS Services. These are summarized notes that I used for the AWS Certifications.

To see the complete documentation, please go to: AWS documentation

Overview​

Elastic Load Balancers(ELB) automatically distribute incoming application traffic across multiple targets and virtual appliances in one or more Availability Zones (AZs).

How Elastic Load Balancing works​

Please see How Elastic Load Balancing works.

Types​

Health Checks​

  • Ping
  • Connection attempt
  • Page request

Listeners​

A listener is a process that checks for connection requests, using the protocol and port that you configure. The rules that you define for a listener determine how the load balancer routes requests to the targets in one or more target groups

Rule conditions​

There are two types of rule conditions.Each rule can have up to one host condition and up to one path condition

  • host
  • path

Stickiness​

Stickiness ensures that the same client is always redirected to the same instance behind the loadbalancer.

  • The cookie used for stickiness has an expiration date which you can control
  • Useful if you want your user to not lose session data

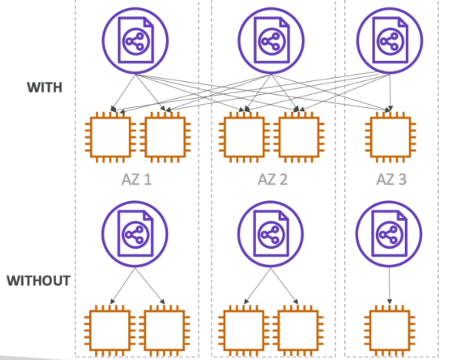

Cross-Zone Loadbalancing​

Load is distribtued evenly across all registered instances in all availability zone.

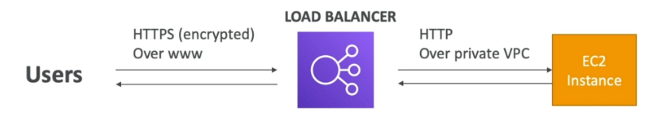

SSL Certificates​

SSL certificates can be used to encrypt the traffic between clients and the loadbalancer.

The loadbalancer uses an X.509 certificate and can eb managed using AWS Certificate Manager (ACM).

  • Need to specify an HTTPS listener.
  • Specify a default certificate
  • Clients can then use SNI to specify the hostname they are trying to reach.

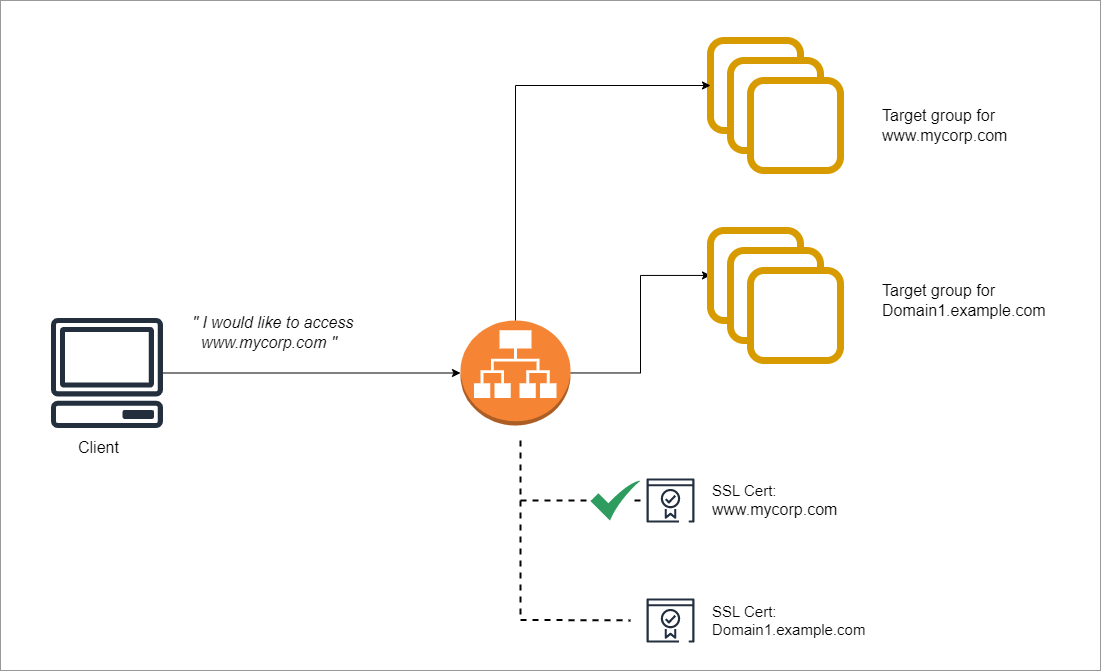

Server Name Indication (SNI)​

SNI solves the problem of lading multiple SSL certificates onto one web server. By using SNI, clients can indicate the hostname to connect to. It supports multiple secure websites using a single secure listener.

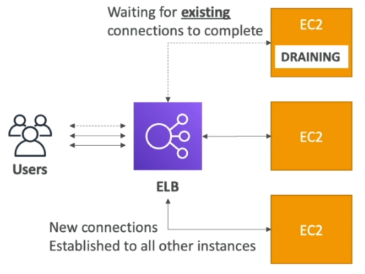

Connection Draining​

Refers to the time to complete "in-flight requests" while the instance is de-registering or unhealthy.

When enabled, new requests will not being sent to the intance being de-registered.

  • Can be disabled by setting value to 0.
  • default is 300 seconds

Server Order Preference​

Ensures that load balancer determines which cipher to use for SSL connection. Elastic Load Balancing supports the Server Order Preference option for negotiating connections between a client and a load balancer.

  • During the SSL connection negotiation process, the client and the load balancer present a list of ciphers and protocols that they each support, in order of preference.

  • By default, the first cipher on the client’s list that matches any one of the load balancer’s ciphers is selected for the SSL connection.

  • If the load balancer is configured to support Server Order Preference, then the load balancer selects the first cipher in its list that is in the client’s list of ciphers.

  • This ensures that the load balancer determines which cipher is used for SSL connection.

  • If you do not enable Server Order Preference, the order of ciphers presented by the client is used to negotiate connections between the client and the load balancer.
