Attack Frameworks

Updated Jan 30, 2024 ·

Cyber Kill Chain​

A model developed that describes the stages by which a threat actor progresses a network intrusion.

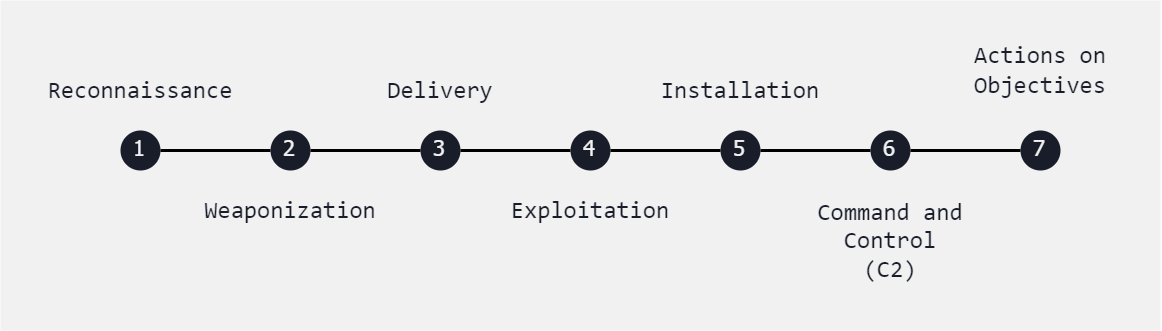

These are the generic stages of Cyber Kill Chain Analysis.

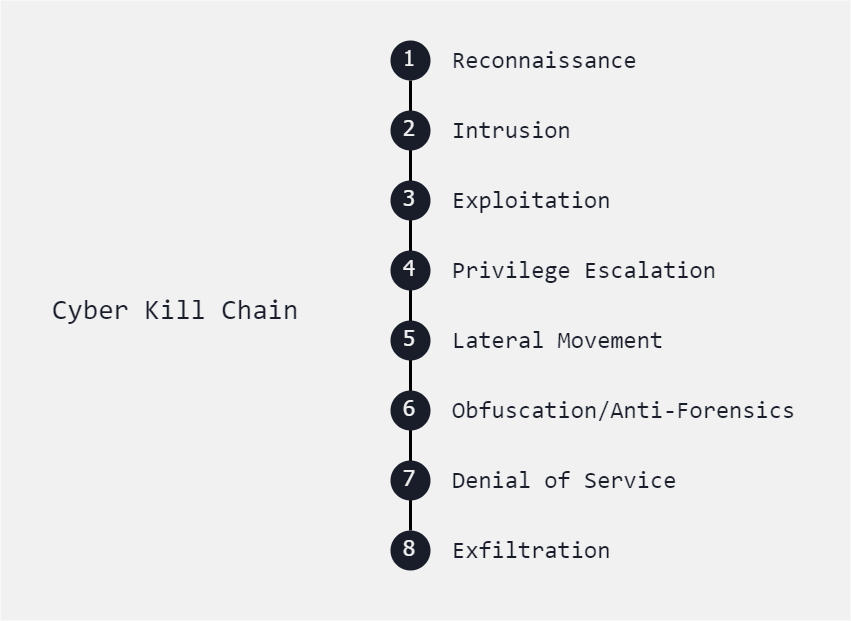

Below is another variation of the Cyber Kill Chain which focuses on a detailed range of stages.

Reconnaissance​

Reconnaissance involves gathering information about the target, such as identifying vulnerabilities and system configurations.

  • Conducting port scans
  • network mapping
  • OS fingerprinting

Intrusion​

Intrusion is all about gaining unauthorized access to the target system or network, offten done through exploitation of vulnerabilities.

  • Exploiting a known software vulnerability to access a web server
  • Exploiting weak credentials to log in to a database.

Exploitation​

Exploitation requires the use of identified vulnerabilities to compromise the target system or gain control.

  • Exploiting a buffer overflow vulnerability in a web application
  • Execute arbitrary code or deploying malware through a phishing email.

Privilege Escalation​

Privilege Escalation involves elevating privileges to gain deeper access and control over the compromised system or network.

  • Exploiting a misconfigured service to gain root access on a Linux server
  • Exploiting a Windows privilege escalation vulnerability to gain administrative privileges.

For more information, please see Privilege Escalation.

Lateral Movement​

Exploitation can also be done by moving laterally within the network to expand access and compromise additional systems or resources.

  • Using compromised credentials to pivot from one system to another within the network
  • Exploiting trust relationships between systems to gain access to sensitive data.
  • For more information, please see Pivoting

Obfuscation/Anti-forensics​

Obfuscation refers to concealment of malicious activities and evasion of detection through the use of security tools and forensic analysis.

  • Encrypting malware payloads to evade antivirus detection
  • Using steganography to hide malicious code within image files

Denial of Service​

Denial of Service (DoS) involves disrupting the availability of services or resources to legitimate users. This can be achieved by overwhelming systems with excessive traffic or resource requests.

  • Launching a distributed denial-of-service (DDoS) attack against a web server.
  • Flooding a network with malformed packets to degrade performance.
  • This makes it unavailable to legitimate users

Exfiltration​

With exfiltration, sensitive data are stolen from the compromised system to external servers controlled by attackers.

  • Extracting customer credit card information from a compromised database
  • Then transferring it to a remote server under the attacker's control
  • Exfiltrating proprietary company documents via encrypted communication channels.

MITRE ATT&CK Framework​

A knowledge base maintained by the MITRE Corporation for listing and explaining specific adversary tactics, techniques, and common knowledge (ATT&CK) or procedures (attack.mitre.org).

  • The pre-ATT&CK tactics matrix aligns to the reconnaissance and weaponization phases of the kill chain.
  • Used for post-compromise analysis to identify attacker techniques:
    • What was done?
    • How was it done?

Mitigation techniques:

  • Modify existing firewall or IDS/IPS alert rules
  • Deploy honeypot traps

Diamond Model of Intrusion Analysis​

A framework for analyzing cybersecurity incidents and intrusions by exploring the relationships between four core features:

  • Adversary
  • Infrastructure
  • Victim
  • Capability

It shows how malicious actors use exploit capabilities over an infrastructure againsts victims.

  • Use data from honeypots
