Communications

Updated Nov 16, 2020 ·

Internet Communication​

Internet communication in Azure allows resources to communicate with external networks. Outbound communication to the internet is available by default, while inbound communication requires additional configuration.

  • Outbound traffic is available by default.
  • Inbound from the internet:
    • Assign a public IP address to the resource
    • Provision a public load balancer

Communication Between Azure Resources​

Azure resources can communicate with each other within a virtual network or across different networks using specific configurations.

Deployment in the Same VNet​

Resources such as Virtual Machines (VMs), Scale Sets, and App Service Environments deployed within the same virtual network can communicate seamlessly.

  • Enables direct communication between resources
  • Simplifies management and deployment within a single network

Service Endpoints​

Service Endpoints enable secure and direct connectivity from a virtual network to Azure resources over the Azure backbone network. This ensures a secure and optimized route for traffic.

For more information, please see Service Endpoints Overview

Private Links allow private access to specific service instances from a virtual network or on-premises. This enhances security by eliminating exposure to the public internet.

For more information, please see Private Link Overview

VNet Peering​

VNet Peering connects two virtual networks, enabling resources to communicate across different VNets as if they were part of the same network.

  • Enables communication between resources in different VNets
  • Facilitates resource sharing across virtual networks

For more information, please see VNet Peering

Communication with On-Prem Networks​

Azure provides several options for connecting virtual networks to on-premises networks. These options include Point-to-Site VPN, Site-to-Site VPN, and Azure ExpressRoute..

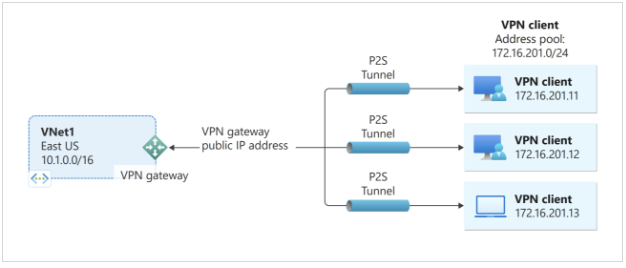

Point-to-Site VPN​

Point-to-Site VPN allows individual computers to connect to the virtual network. It is typically used for remote worker access.

  • Connects a single computer to the virtual network
  • Uses separate connections for each on-premises computer or client

For more information, please see Point-to-Site VPNs

Point-to-Site VPN

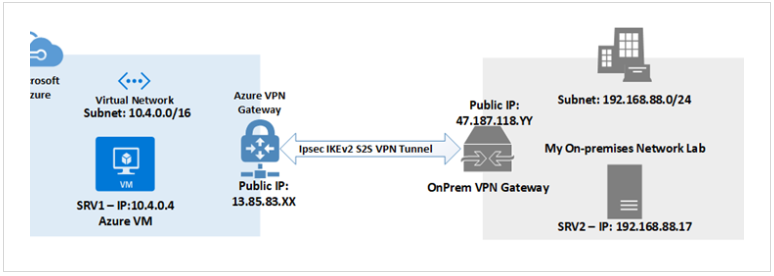

Site-to-Site VPN​

Site-to-Site VPN connects an entire on-premises network to an Azure virtual network. It provides a secure, encrypted connection over the internet and utilizes the Azure VPN Gateway.

  • Connects entire on-premises network to Azure
  • Secure, encrypted connection over the internet

For more information, please see Site-to-Site VPNs

Site-to-Site VPN

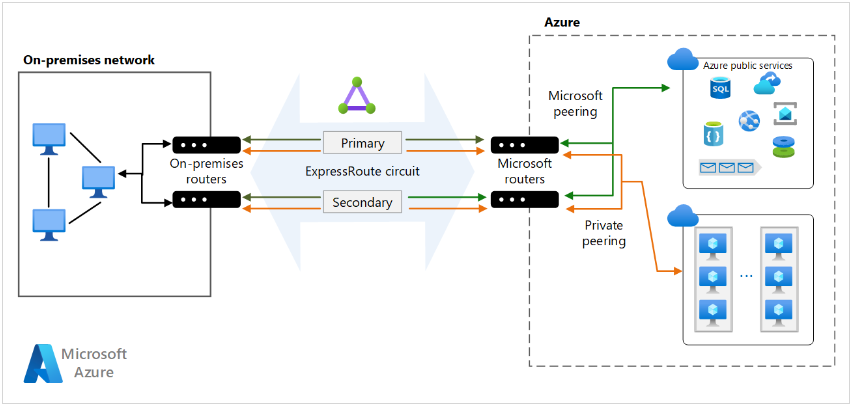

Azure ExpressRoute​

Azure ExpressRoute provides a private connection between an on-premises network and Azure. It offers a more robust and dedicated connection by avoiding the public internet, established through an ExpressRoute partner.

For more information, please see Azure ExpressRoute

Azure ExpressRoute
