Kubelet Security

Updated Mar 11, 2022 ·

The Kubelet​

The kubelet is a vital Kubernetes component responsible for managing and monitoring individual nodes in a cluster.

  • Starts, stops, and maintains application containers.
  • Runs readiness and liveness probes to check container health.
  • Registers the node with the control plane.
  • Handles volume mounting/unmounting for Pods.
  • Reports node and pod statuses to the API server.

Viewing Kubelet Options​

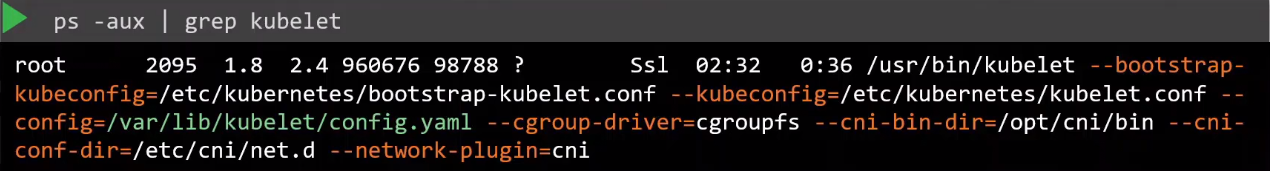

To inspect kubelet options, find its configuration file:

ps -aux | grep kubelet

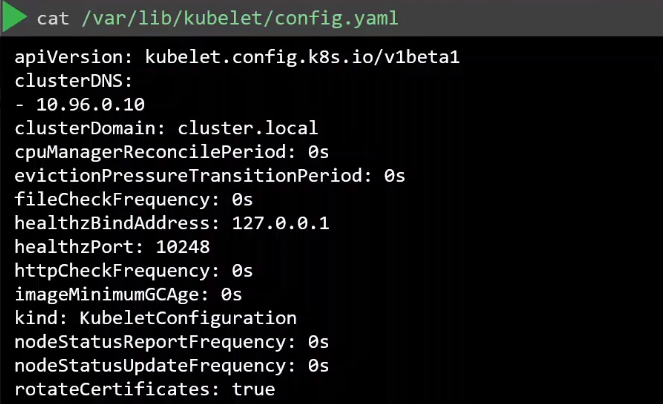

Once located, review the options in the file.

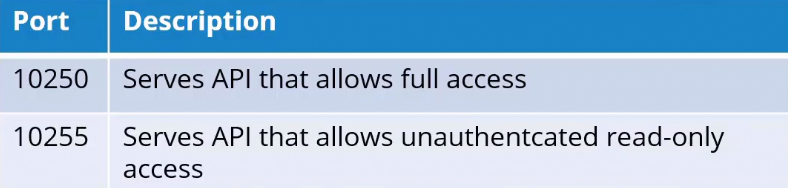

Ports used by kubelet​

The kubelet listens on two ports, which pose a security risk if exposed. Authentication and authorization mechanisms help secure access.

Disable Anonymous Authentication​

Anonymous access allows unauthenticated users to list pod details. Disable it by setting --anonymous-auth=false in the kubelet configuration:

## kubelet.service
[Unit]
Description=Kubernetes Kubelet
Documentation=https://kubernetes.io/docs/concepts/overview/components/#kubelet

[Service]
ExecStart=/usr/bin/kubelet \
  --config=/etc/kubernetes/kubelet.conf \
  --container-runtime=docker \
  --kubeconfig=/etc/kubernetes/kubelet.kubeconfig \
  --fail-swap-on=false \
  --cgroup-driver=cgroupfs \
  --network-plugin=cni \
  --pod-manifest-path=/etc/kubernetes/manifests \
  --allow-privileged=true \
  --anonymous-auth=false
Restart=on-failure
RestartSec=5

[Install]
WantedBy=multi-user.target

This parameter can also be set in the kubelet config file.

apiVersion: kubelet.config.k8s.io/v1beta1
kind: KubeletConfiguration
authentication:
  anonymous:
    enabled: false

Authentication Mechanisms​

Certificate (x509)​

Configure the kubelet to use TLS certificates for secure communication with the API server. Specify the CA file in the kubelet service file and ensure certificates are valid and up-to-date.

## kubelet.service
[Unit]
Description=Kubernetes Kubelet
Documentation=https://kubernetes.io/docs/concepts/overview/components/#kubelet

[Service]
ExecStart=/usr/bin/kubelet \
  . . .
  --anonymous-auth=false \
  --client-ca-file=/path/to/ca.crt
Restart=on-failure
RestartSec=5

[Install]
WantedBy=multi-user.target

Similary, it can be specified in the kubelet config file.

apiVersion: kubelet.config.k8s.io/v1beta1
kind: KubeletConfiguration
authentication:
  anonymous:
    enabled: false
  x509:
    clientCAFile: /path/to/ca.crt

Once you have the certificates, we can pass this to the curl command:

curl -sk https://localhost:10250/pods/ \
--key kubelet-key.pem \
--cert kubelet-cert.pem

When the kube-apiserver tries to communicate to kubelet, the kube-apiserver also has to authenticate to the kubelet. This means that the kube-apiserver needs to have kubelet client cert and key.

[Unit]
Description=Kubernetes API Server
Documentation=https://kubernetes.io/docs/reference/command-line-tools-reference/kube-apiserver/
After=network.target

[Service]
ExecStart=/usr/bin/kube-apiserver \
  . . .
  --kubelet-client-certificate=/etc/kubernetes/pki/apiserver-kubelet-client.crt \
  --kubelet-client-key=/etc/kubernetes/pki/apiserver-kubelet-client.key \
  --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname  \

API Bearer Tokens​

Bearer tokens authenticate kubelets to the API server via the "Authorization" header in HTTP requests.

  • Tokens are sent in this format: Authorization: Bearer <token>.
  • The API server verifies the token.
  • Valid tokens allow the operation; invalid ones are denied.

Below is a simplified example of how a Bearer Token might be used in a kubelet configuration:

apiVersion: v1
kind: Config
clusters:
- name: my-cluster
  cluster:
    server: https://api-server-address
users:
- name: kubelet-user
  user:
    token: <bearer-token-here>
contexts:
- name: my-context
  context:
    cluster: my-cluster
    user: kubelet-user
current-context: my-context

Authorization Mechanisms​

Once the user gains access to the system, authorization defines what resources the user can interact with.

AlwaysAllow​

This is the default authorization mode and will always allow all requests to the API.

## kubelet.service
[Unit]
Description=Kubernetes Kubelet
Documentation=https://kubernetes.io/docs/concepts/overview/components/#kubelet

[Service]
ExecStart=/usr/bin/kubelet \
  . . .
  --anonymous-auth=false \
  --client-ca-file=/path/to/ca.crt
  --authorization-mode=AlwaysAllow

kubelet config file:

apiVersion: kubelet.config.k8s.io/v1beta1
kind: KubeletConfiguration
authentication:
  anonymous:
    enabled: false
  x509:
    clientCAFile: /path/to/ca.crt
  mode: AlwaysAllow

Webhook​

When set to Webhook, the kubelet first makes a call to the API server to determine is the request should be granted or not.

## kubelet.service
[Unit]
Description=Kubernetes Kubelet
Documentation=https://kubernetes.io/docs/concepts/overview/components/#kubelet

[Service]
ExecStart=/usr/bin/kubelet \
  . . .
  --anonymous-auth=false \
  --client-ca-file=/path/to/ca.crt
  --authorization-mode=Webhook

kubelet config file:

apiVersion: kubelet.config.k8s.io/v1beta1
kind: KubeletConfiguration
authentication:
  anonymous:
    enabled: false
  x509:
    clientCAFile: /path/to/ca.crt
  mode: Webhook

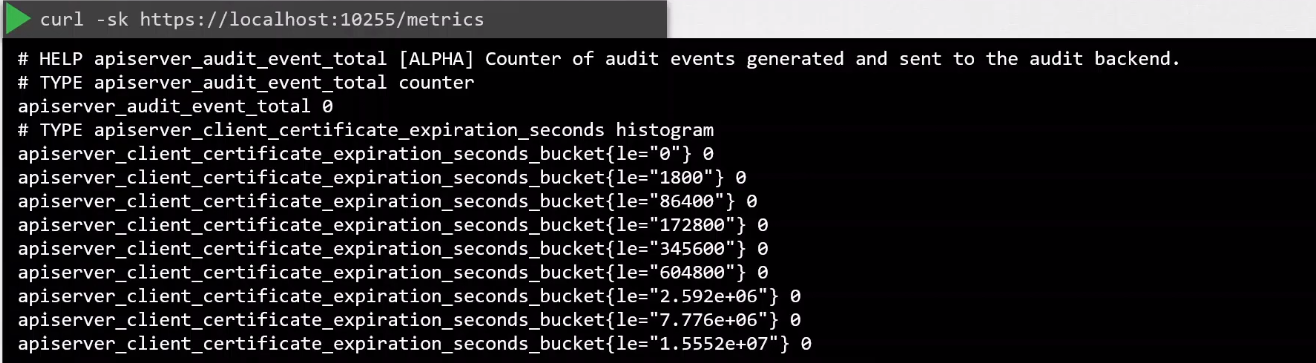

Read-only Metrics API​

The metrics API allows read-only access which doesn't need any authentication or authorization.

This is enabled when the read-only-port flag is set to non-zero number in the kubelet service file.

## kubelet.service
[Unit]
Description=Kubernetes Kubelet
Documentation=https://kubernetes.io/docs/concepts/overview/components/#kubelet

[Service]
ExecStart=/usr/bin/kubelet \
  . . .
  --anonymous-auth=false \
  --client-ca-file=/path/to/ca.crt
  --authorization-mode=Webhook
--read-only-port=10255                 ## If set to zero, metrics is disabled
