Managing Directories

Updated Apr 19, 2022 ·

The Problem with Too Many YAML Files

When all YAML files are in one folder, applying them is easy. For example:

project-abc/
├── api-deployment.yaml
├── api-service.yaml
├── db-deployment.yaml
└── db-service.yaml

You can apply all these YAMLs at once using:

kubectl apply -f project-abc/

As the number of YAML files grows, keeping them in one place becomes messy. It's best to split them into subdirectories for better organization:

project-abc-configs/
├── api/
│   ├── deployment.yaml
│   └── service.yaml
├── db/
│   ├── deployment.yaml
│   └── service.yaml
├── ingress/
│   └── ingress.yaml
└── config/
    └── configmap.yaml

The Drawback of Subdirectories

Once files are moved into subdirectories, you need to apply each folder separately.

Run kubectl apply -f project-abc/api
Then run kubectl apply -f project-abc/db and so on
Must repeat for each new subdirectory
Adds effort every time you update or deploy

This makes automation harder and wastes time as your project scales.

Using `Kustomization.yaml` in Root

You can solve the issue of repeated kubectl by adding a kustomization.yaml file in your root project-abc/ directory.

project-abc-configs/
├── kustomization.yaml
├── api/
│   ├── deployment.yaml
│   └── service.yaml
└── db/
    ├── deployment.yaml
    └── service.yaml

In the kustomization.yaml, you need to list all YAML files using their relative paths:

apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

resources:
  - api/deployment.yaml
  - api/service.yaml
  - db/deployment.yaml
  - db/service.yaml

This helps keep things manageable and modular, especially in larger projects. To apply the resources:

kubectl apply -k project-abc

Nested Kustomization Files

As the number of directories grows, the root kustomization.yaml becomes too long and messy. Consider the files below:

project-abc-configs/
├── kustomization.yaml
├── api/
│   ├── deployment.yaml
│   └── service.yaml
├── db/
│   ├── deployment.yaml
│   └── service.yaml
├── kafka/
│   ├── deployment.yaml
├── cache/
│   ├── deployment.yaml
├── ingress/
│   └── ingress.yaml
└── config/
    └── configmap.yaml

We can add add all the paths to the root kustomization.yaml, but it becomes error-prone and difficult to organize:

apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

resources:
  - api/deployment.yaml
  - api/service.yaml
  - db/deployment.yaml
  - db/service.yaml
  - kafka/deployment.yaml
  - cache/deployment.yaml
  - ingress/ingress.yaml
  - config/configmap.yaml

Even though this works, it’s no longer neat or scalable. Instead of listing every YAML in the root file, add a kustomization.yaml inside each subfolder.

project-abc-configs/
├── kustomization.yaml
├── api/
│   ├── deployment.yaml
│   ├── kustomization.yaml
│   └── service.yaml
├── db/
│   ├── deployment.yaml
│   ├── kustomization.yaml
│   └── service.yaml
├── kafka/
│   ├── deployment.yaml
│   ├── kustomization.yaml
├── cache/
│   ├── deployment.yaml
│   ├── kustomization.yaml
├── ingress/
│   └── ingress.yaml
│   ├── kustomization.yaml
└── config/
    └── configmap.yaml
    └── kustomization.yaml

The root kustomization.yaml only needs to point to the folder names:

apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

resources:
  - api
  - db
  - kafka
  - cache
  - ingress
  - config

The Kustomization file for each subfolder will just need to list the YAML files only for that folder. For example:

project-abc/api/kustomization.yaml:

resources:
  - deployment.yaml
  - service.yaml

project-abc/db/kustomization.yaml:

resources:
  - deployment.yaml
  - service.yaml

project-abc/kafka/kustomization.yaml:
```
resources:
  - deployment.yaml
```
project-abc/cache/kustomization.yaml:
```
resources:
  - deployment.yaml
```
project-abc/ingress/kustomization.yaml:
```
resources:
  - ingress.yaml
```
project-abc/config/kustomization.yaml:
```
resources:
  - configmap.yaml
```

Kustomize will look into each folder and build everything based on these nested files.

Deploy Everything

After setting it up, you only need one command to deploy all:

kustomize build project-abc | kubectl apply -f -

Or with kubectl only:

kubectl apply -k project-abc

This keeps your setup clean and scalable, no matter how many subdirectories you add later.

Lab: Deploy a Multi-Tier App

This lab shows how to deploy a basic multi-tier application using Kustomize. Each service uses a lightweight container to simulate real functionality.

project-abc-configs/
├── kustomization.yaml
├── api/
│   ├── deployment.yaml
│   ├── kustomization.yaml
│   └── service.yaml
├── db/
│   ├── deployment.yaml
│   ├── kustomization.yaml
│   └── service.yaml
├── kafka/
│   ├── deployment.yaml
│   ├── kustomization.yaml
├── cache/
│   ├── deployment.yaml
│   ├── kustomization.yaml
├── ingress/
│   ├── ingress.yaml
│   ├── kustomization.yaml
└── config/
    ├── configmap.yaml
    └── kustomization.yaml

Setup the Kubernetes Cluster

Before getting started, make sure you have a running Kubernetes cluster. You can set up a local cluster using tools like:

Clone the Repository

All the files are in this Github repo: joseeden/labs-kustomize

git clone https://github.com/joseeden/labs-kustomize.git

Go to the project directory:

cd code-samples/03-multi-tier-app

Install NGINX Ingress Controller

To handle the ingress resources, we must first install the NGINX Ingress Controller:

kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v1.10.0/deploy/static/provider/cloud/deploy.yaml

Wait for the ingress controller to be ready:

watch kubectl get pods -n ingress-nginx

Output:

NAME                                        READY   STATUS              RESTARTS   AGE
ingress-nginx-admission-create-87std        0/1     Completed           0          34s
ingress-nginx-admission-patch-q5xxk         0/1     Completed           0          34s
ingress-nginx-controller-7dcdbcff84-c592j   1/1     Running             0          34s

info

Not all pods will necessarily show a Running status. The two pods marked as Completed are Kubernetes Jobs, which are expected to run once and then exit.

The key thing to check is that the controller pod is in a Running state. This indicates the Ingress controller is active and working correctly.

Deploy the Project

Create the namespace first:

kubectl create ns multitier

From the 03-multi-tier-app folder:

kubectl apply -k . -n multitier

Output:

configmap/app-config created
service/api created
service/db created
deployment.apps/api created
deployment.apps/cache created
deployment.apps/db created
deployment.apps/kafka created
ingress.networking.k8s.io/api-ingress created

Verify by checking the resources:

watch kubectl get all -n multitier

Output:

NAME                    READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/api     1/1     1            1           107s
deployment.apps/cache   1/1     1            1           107s
deployment.apps/db      1/1     1            1           107s
deployment.apps/kafka   1/1     1            0           107s

NAME                         READY   STATUS    RESTARTS   AGE
pod/api-558c8b64d4-ql467     1/1     Running   0          4m30s
pod/cache-848c4dbb8c-9f9kr   1/1     Running   0          4m30s
pod/db-7c476c8954-ljldj      1/1     Running   0          4m30s
pod/kafka-b6f87596d-4gwvh    1/1     Running   0          4m30s

NAME          TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)    AGE
service/api   ClusterIP   10.96.129.0     <none>        80/TCP     4m30s
service/db    ClusterIP   10.96.246.129   <none>        5432/TCP   4m30s

NAME                    READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/api     1/1     1            1           4m30s
deployment.apps/cache   1/1     1            1           4m30s
deployment.apps/db      1/1     1            1           4m30s
deployment.apps/kafka   1/1     1            1           4m30s

NAME                               DESIRED   CURRENT   READY   AGE
replicaset.apps/api-558c8b64d4     1         1         1       4m30s
replicaset.apps/cache-848c4dbb8c   1         1         1       4m30s
replicaset.apps/db-7c476c8954      1         1         1       4m30s
replicaset.apps/kafka-b6f87596d    1         1         1       4m30s

Testing

Once the application is deployed, use the following steps to verify that each component is working as expected.

API reachable through Ingress and port-forward
PostgreSQL DB is up and accessible
Kafka UI loads successfully in browser
Redis responds to PING command
ConfigMap is applied and available

API

Verify the API is running and reachable. Open two terminals to run port-forwardign and the test:

Terminal 1:

kubectl port-forward -n multitier svc/api 8080:80

Terminal 2:

curl http://localhost:8080

Expected output:

Hello from API

DB

Check if the PostgreSQL database is running correctly. View logs:

kubectl logs -n multitier deployment/db

You should see this in the output:

PostgreSQL init process complete; ready for start up.

2022-03-28 22:52:33.528 UTC [1] LOG:  starting PostgreSQL 15.13 (Debian 15.13-1.pgdg120+1) on x86_64-pc-linux-gnu, compiled by gcc (Debian 12.2.0-14) 12.2.0, 64-bit
2022-03-28 22:52:33.529 UTC [1] LOG:  listening on IPv4 address "0.0.0.0", port 5432
2022-03-28 22:52:33.529 UTC [1] LOG:  listening on IPv6 address "::", port 5432
2022-03-28 22:52:33.538 UTC [1] LOG:  listening on Unix socket "/var/run/postgresql/.s.PGSQL.5432"
2022-03-28 22:52:33.551 UTC [66] LOG:  database system was shut down at 2022-03-28 22:52:33 UTC
2022-03-28 22:52:33.569 UTC [1] LOG:  database system is ready to accept connections

Optional: Connect using psql (if installed):

Terminal 1:

kubectl port-forward -n multitier svc/db 5432:5432

Terminal 2:

psql -h localhost -U postgres -d postgres

Expected output:

psql (17.5 (Ubuntu 17.5-1.pgdg22.04+1), server 15.13 (Debian 15.13-1.pgdg120+1))
Type "help" for help.

postgres=#

info

You may need to install the psql client using:

sudo apt-get update
sudo apt-get install -y postgresql-client postgresql-client-common

Kafka

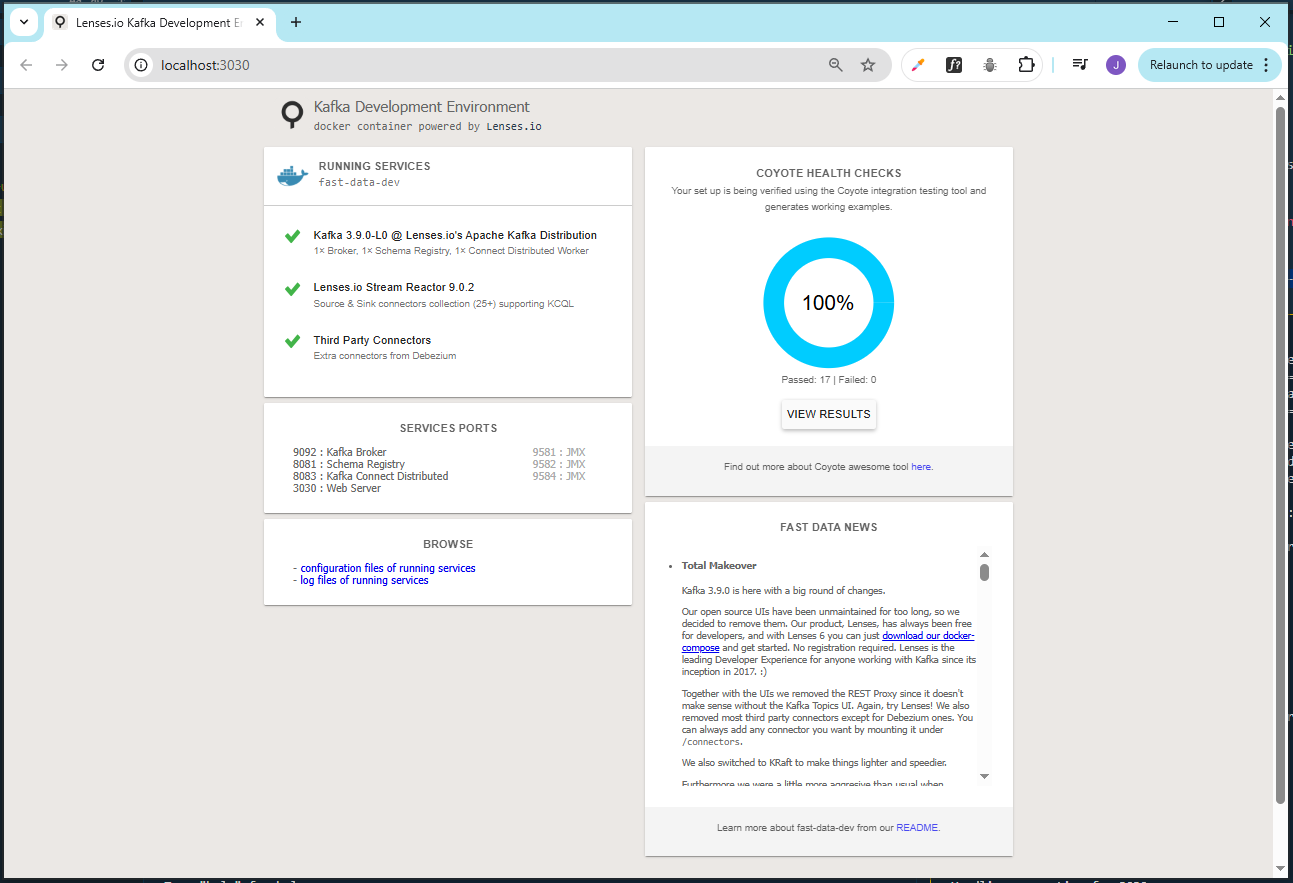

Access the Kafka UI to verify it’s running.

kubectl port-forward -n multitier deployment/kafka 3030:3030

Open in a browser:

http://localhost:3030

Redis (Cache)

Check that Redis is accepting connections.

kubectl exec -it deployment/cache -n multitier -- redis-cli ping

Expected output:

PONG

ConfigMap

Ensure that the ConfigMap is created and contains the expected configuration.

kubectl get configmap app-config -n multitier -o yaml

Since the ConfigMap is being referenced in the db/deployment.yaml file, you can also test if the environment variable is actually injected. Check the db pod first:

$ kubectl get pod -n multitier

NAME                     READY   STATUS    RESTARTS   AGE
api-b4c456475-xjvgv      1/1     Running   0          91s
cache-848c4dbb8c-9f9kr   1/1     Running   0          30m
db-7c476c8954-ljldj      1/1     Running   0          30m
kafka-b6f87596d-4gwvh    1/1     Running   0          30m

Then run:

kubectl exec -it db-7c476c8954-ljldj -n multitier -- printenv APP_MODE

Output:

demo

info

You can change the variable in the configmap and redeploy. Then test again if it will print the new environment variable.

Cleaning Up

To delete all resources in the multitier namespace:

kubectl delete -n multitier -k .

If you used port-forwarding, stop any remaining processes:

ps -ef  | grep port-forward
ps -ef | grep '[p]ort-forward' | awk '{print $2}' | xargs -r sudo kill -9
